Traffic - Reusable Cable 'Bottle' Joints
Standard Range BS2 BS2/CS1 BS4

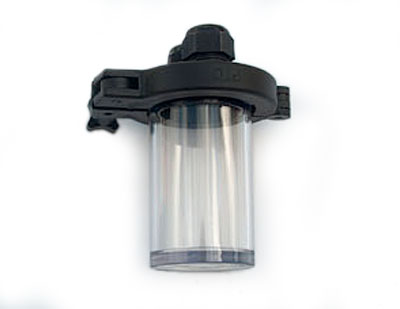

Pic of BS2 Pic of BS2/CS1 Pic of BS4
Temperature range -40°C to +60°C
Protection class IP 68. Cat. 1
Enclosure Waterproof and dustproof polycarbonate, transparent
Dimensions (height x width)
incl. locking mechanism
Approx.
155mm x 142mm
Approx.
185mm x 142mm
Approx.
150mm x 175mm
Number / size of entry glands 2 x M25 3 x M25 4 x M25
Weight Approx. 355g Approx. 375g Approx. 575g

Product description Product code

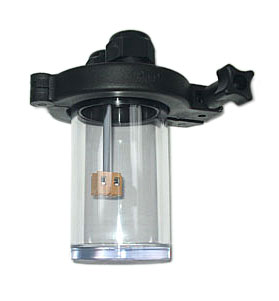

1 Feeder, 2 Loop Tails, 2 Way Terminal Block BS2/F/2/TB2+CS0/C

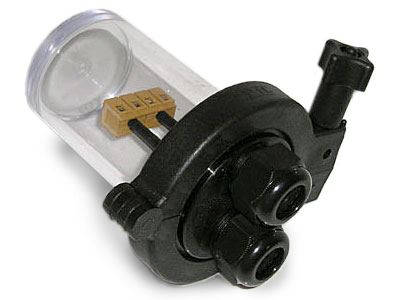

1 Feeder, 4 Loop Tails, 4 Way Terminal Block BS2/F/4/TB4+CS0/C
1 Feeder, 2 or 4 Loop Tails, no Terminal Block BS2/F/2-4+CS0/C

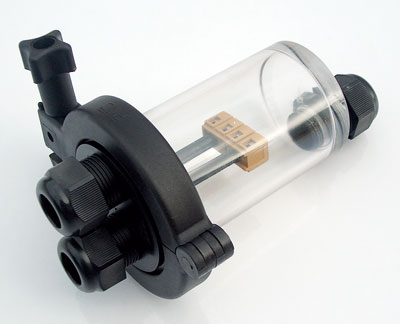

2 Feeders, 2 or 4 Loop Tails, 4 Way Terminal Block BS2/F/F/TB4+CS1/2-4/C

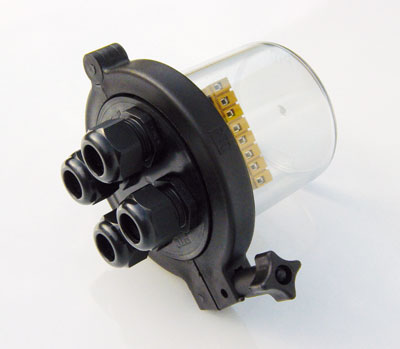

2 Feeders, 8 Loop Tails, 8 Way Terminal Block (MIDAS) BS4/F/F/8/TB8+CL0/C

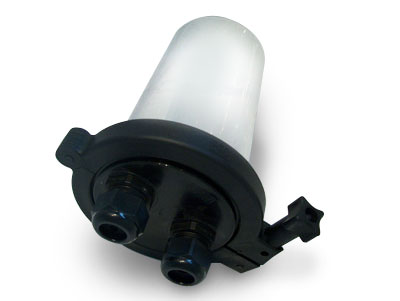

Sietag Waterproof Enclosure BSL/FTF/2+CLL0/C

Street Lighting - Reusable Street Lighting ‘Power’ Joints
Product description Product code

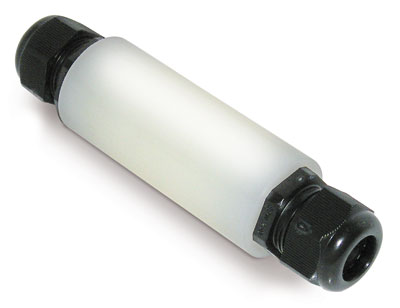

Street Lighting Sub-Surface (In-line special) SF/4

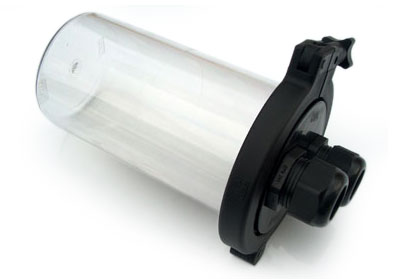

Street Lighting Standard BL2/32/32+CLL0/O
3 hole Passive Power Joint, 4 way 10mm² terminations BL3/32/32/25/CH/PTB4+CL0/C

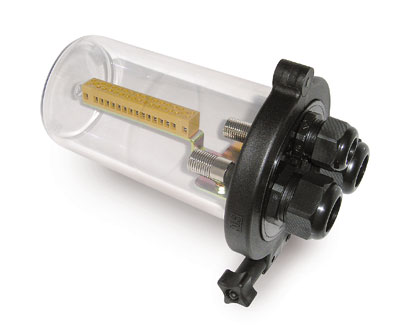

3 hole Passive Safety Pole, 16 Way Terminal Block BL3/32/32/25/TB16+CLL0/C

Lamps
Product description Product code
50v40w Edison Screw (Clear or Pearl) 5040ESCP
50v60w Edison Screw (Clear or Pearl) 5060ESCP
24v40w Edison Screw (Clear or Pearl) 2440ESCP
240v60w Edison Screw (Clear or Pearl) Rough Service 60ESRS
240v6W Fluorescent Miniature Daylight F6W/CW

Earthing Glands
Small (I/D 14mm) Medium (I/D 17mm) Large (I/D 22mm)
1 Pair Feeder 12 Core Cable 20 Core Cable
2 Pair Feeder 16 Core Cable 24 Core Cable
8 Core Cable

Seals
Single seal Multiple seal Special seals
for 2.5mm cables
PTC 1x16 PTC 1x13 PTC 2x7 PTC 4x7 PTC 8x2.5
Pic of One hole 16mm inner diameter seal Pic of One hole 13mm inner diameter seal Pic of Two holes 7mm inner diameter seal Pic of Four holes 7mm inner diameter seal Pic of Eight holes 2.5mm inner diameter seals Pic of 6 bungs for unused holes
One hole
16mm
inner diameter
One hole
13mm
inner diameter
Two holes
7mm
inner diameter
Four holes
7mm
inner diameter
Eight holes 2.5mm
inner diameter and 6 bungs
for unused holes
